The same Humminbird technology that has been dominant on the water is now fully integrated into the ice fishing product line, thanks to a handful of new product introductions. Ice anglers will now have access to an upgraded HELIX® lineup with bundles that include Humminbird MEGA Live Imaging™ and Humminbird MEGA 360 Imaging®. In addition, anglers will have access to a purpose-built Premium Ice Shuttle, new lithium batteries included in select bundles as well as adapter and conversion kits to fit nearly every on-ice electronics need.
Humminbird MEGA Live Imaging
Humminbird has created a turnkey option for the ice angler looking to harness the power of the award-winning Humminbird MEGA Live technology. With Humminbird MEGA Live, the angler can see fish, bait and structure in real-time with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.

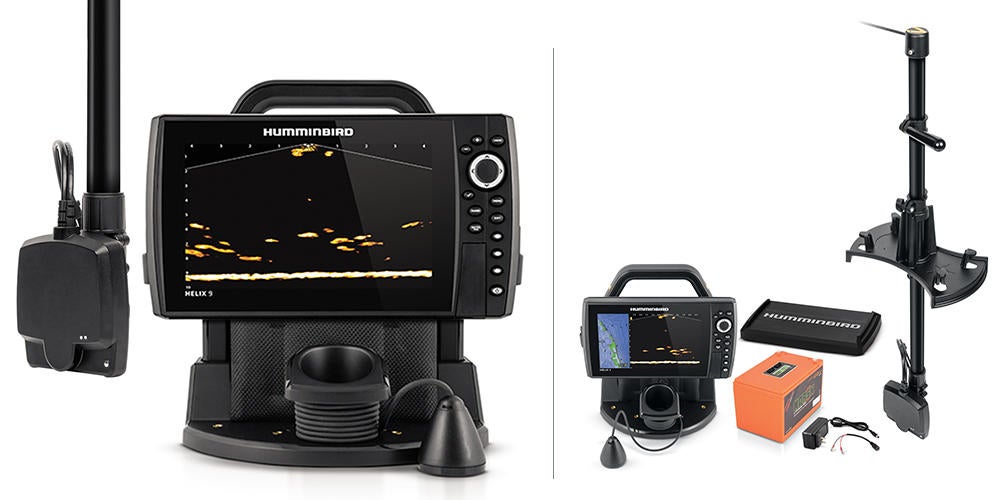

Humminbird ICE HELIX 9 MSI+ GPS G4N MEGA Live Bundle
- 9″ 1024 x 600 display
- 8000 watts peak-to-peak power
- 1500 nit brightness screen
- High capacity battery (with 2 USB ports, battery % indicator) and charger
- New shuttle
- Silicone screen cover
- MEGA Live transducer, shaft, adapter kit
- MEGA Live Imaging
- Live sonar with the clarity of MEGA Imaging
- Choose from multiple viewing modes: Down, forward and landscape
- Mark and view waypoints on the MEGA Live sonar screen
- Range of up to 150 feet
- No necessity for a sonar black box
- Dual Spectrum CHIRP Sonar o ¾” target separation
- 1024 segment flasher view
- Six CHIRP interference rejection settings
- Adjustable sonar zoom, up to 16X
- Split screen sonar views (Flasher and 2D)
- Built-in GPS and Mapping o Mark waypoints
- Built-in HB Basemap
- Dual SD Slots for LakeMaster / Navionics / AutoChart Live cards
- AutoChart Live Ice
- Networking: Ethernet, Bluetooth, NMEA 2000® and Wi-Fi
- MSRP: $2,999.99
- Available: October 1, 2021
Humminbird ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle
A technology exclusive to the Humminbird brand, Humminbird MEGA 360 Imaging is available for ice anglers looking to reap to the rewards of MEGA 360 Imaging. MEGA 360 Imaging eliminates the guesswork and allows anglers to quickly find structure and fish without drilling as many holes, track schools of fish as they move and know which direction the fish are headed.
- 9″ 1024 x 600 display with 1500 nit brightness screen
- 8000 watts peak-to-peak power
- High capacity battery (with 2 USB ports, battery % indicator) and charger
- New shuttle
- Silicone screen cover
- MEGA 360 transducer, shaft, adapter kit, heading sensor GPS puck
- MEGA 360 Imaging o Range of up to 125 feet around your hole
- Adjustable sweep area, size and direction
- Mark and view waypoints on the MEGA 360 sonar screen
- Range rings provide a quick reference of your distance from the target
- Dual Spectrum CHIRP Sonar o 3/4″ target separation
- 1024 segment flasher view
- Six CHIRP interference rejection settings
- Adjustable sonar zoom, up to 16X
- Split screen sonar views (Flasher and 2D)
- Built-in GPS and Mapping o Mark waypoints
- Built-in HB Basemap
- Dual SD Slots for LakeMaster / Navionics / AutoChart Live cards
- AutoChart Live Ice
- Networking: Ethernet, Bluetooth, NMEA 2000® and Wi-Fi
- MSRP: $2,799.99
- Available: October 1, 2021

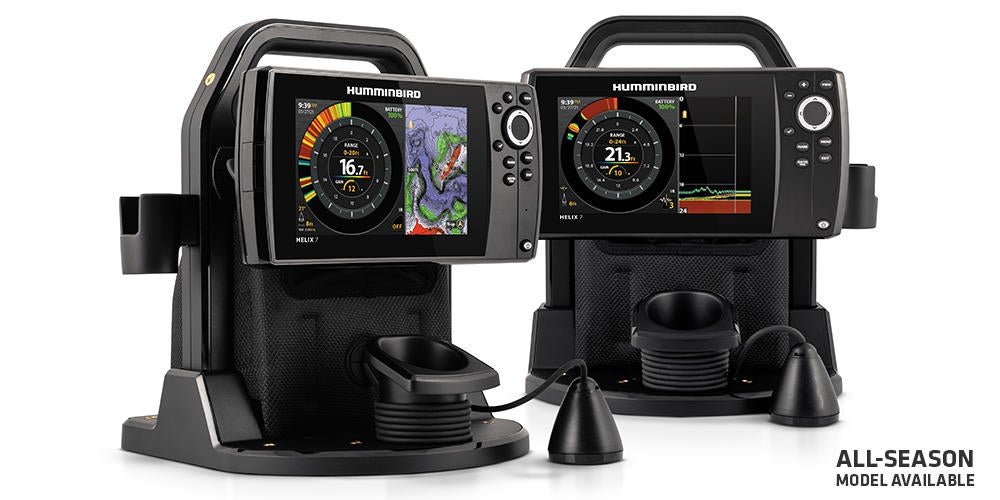

Humminbird ICE HELIX 7 CHIRP GPS G4 All Season
The new ICE HELIX 7 G4 models provide anglers a popular screen size with updated and intuitive Humminbird technology including the new premium ice shuttle, 15Ah lithium battery and a higher resolution HD display (1024 x 600).
- Higher resolution HD display (1024 x 600)
- 4000 Watts Peak-to-Peak power
- 7″ 1024 x 600 color TFT display
- 1500 nit brightness screen
- 15Ah Lithium Battery
- Dual Spectrum CHIRP Sonar o ¾” target separation
- 1024 segment flasher view
- Six CHIRP interference rejection settings
- Adjustable sonar zoom, up to 16x
- Split screen sonar views (Flasher and 2D)
- Built-in GPS and Mapping o Mark waypoints
- Built-in HB basemap
- MicroSD slot for Lakemaster/Navionics charts
- AutoChart Live Ice
- Shuttle mount, hardware, transducer and silicone screen cover
- Includes open water accessories (Gimbal bracket, power cable, XNT 9 HW T transducer and transducer suction cup mount)
- MSRP: $999.99
- Available: October 1, 2021

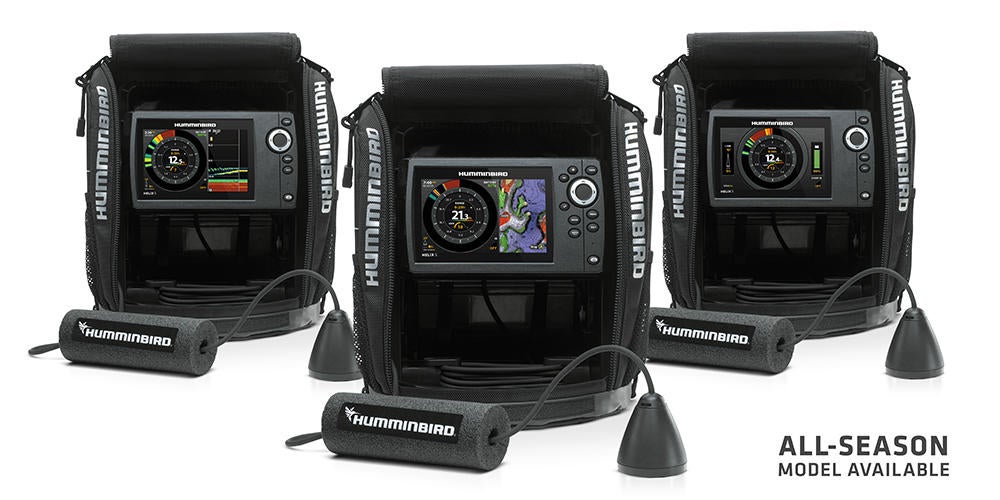

Humminbird ICE HELIX 5 CHIRP GPS G3 All Season
- 4000 Watts Peak-to-Peak power
- 5″ 800H x 480V color TFT display
- 1500 nit brightness screen
- Dual Spectrum CHIRP Sonar o 3/4″ target separation
- 1024 segment flasher view
- Six CHIRP interference rejection settings
- Adjustable sonar zoom, up to 16X
- Split screen sonar views (Flasher and 2D)
- Built-in GPS and Mapping o Mark waypoints
- Built-in HB Basemap
- MicroSD Slot for LakeMaster / Navionics charts
- AutoChart Live Ice
- Shuttle mount, hardware, transducer, soft sided carrying bag, 12V 9AH SLA battery & charger
- Includes open water accessories (Gimbal bracket, power cable, XNT 9 HW T transducer and transducer suction cup mount)
- MSRP: $599.99
- Available: October 1, 2021
ICE HELIX Accessories

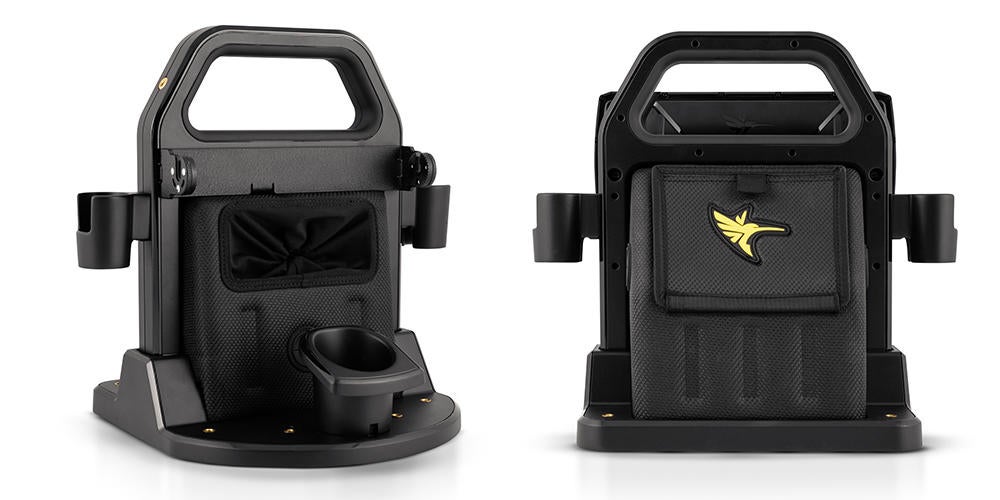

New Premium Ice Shuttle
Humminbird has created a Premium Ice Shuttle to help anglers stay organized and on top of their game while fishing on the ice. The Premium Ice Shuttle features innovations to help anglers keep their equipment protected and easily accessible.
• Master Power Switch: Easily turn power on and off, without disconnecting the battery.
• Quick-Connect SAE Power Cables: Simply connect the battery to the charger without removing the battery from the shuttle.
• Large Handle: Designed with plenty of room to make it easy to carry.
• Modular Design: With multiple ¼”-20 mounting options, you can customize the shuttle with the accessories you need, right where you need them.
• Dual Rod Holders: Keep your rods organized and secure while on the ice, in transport or storage.
• Cable and Transducer Management: The built-in cable wrap allows you to select the specific amount of transducer cable for your fishing situation. And when transporting your unit, the transducer and 8 foot transducer cable are stored and protected.
• Battery Protector: Keeps your battery secure and out of the elements.
• Compatible with: Helix 7, 8, 9, and 10 CHIRP models — Standard on all ICE HELIX G4/G4N models

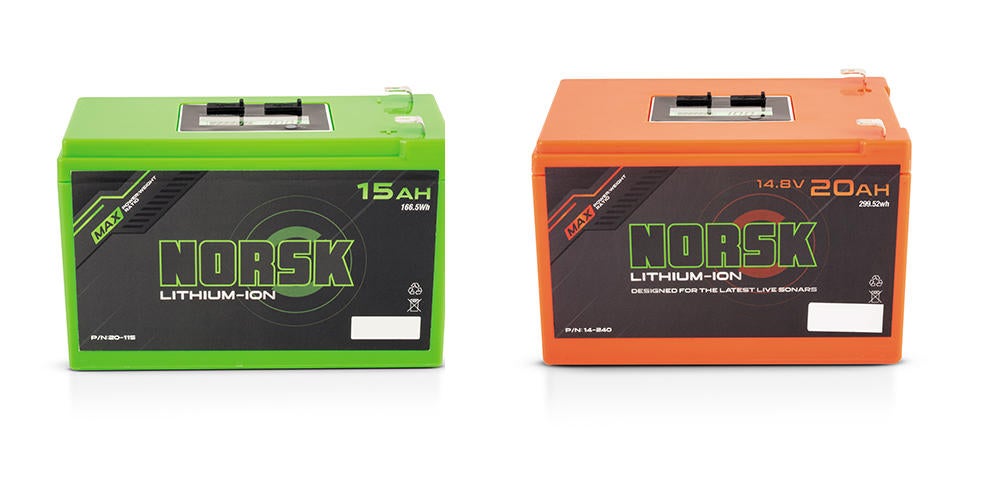

Lithium Batteries
Included in select Humminbird ICE HELIX bundles, Humminbird has added a 15Ah or 20Ah lithium battery kit to ensure that the anglers’ electronics are running efficiently for long days on the ice.
• 2 USB ports
• Battery % indicator
• Quick connect charger
• 15Ah included in: ICE HELIX 7 CHIRP GPS G4 and G4 All Season
• 20Ah included in: ICE HELIX 9 MSI+ GPS G4N Bundles and Conversion Kits (MEGA Live and MEGA 360)
HELIX ICE Conversion & Adapter Kits
To simplify the process of building your Humminbird ICE HELIX setup, Humminbird is offering adapter and conversion kits to help anglers match their electronic needs.
Adapter Kits
• ICE Adapter Kit – MEGA Live o MEGA Live ICE Adapter for HELIX 7 G4N, 8, 9 or 10 with MSI or MDI
o Includes all accessories needed to convert a MEGA Live Imaging transducer for ice fishing • Shaft, base, handle and adjustable depth collar, custom power and ethernet cables
o MSRP: $499.99
• ICE Adapter Kit – MEGA 360 o MEGA 360 ICE ADAPTER for 8-10 G3N/G4N models with MEGA Imaging
o Includes all accessories needed to convert a MEGA 360 Imaging transducer for ice fishing • Includes a base, shaft positioning handle, depth collars, height adjustment and GPS Heading Sensor
o MSRP: $499.99
Conversion Kits
• HELIX ICE Conversion Kit – MEGA Live o Includes everything needed to convert a HELIX 7 G4N, 8, 9, or 10 with MSI or MDI for ice fishing with MEGA Live Imaging • MEGA Live transducer, shuttle, shaft, base, handle, and adjustable depth collar, custom power and ethernet cables, and a 20Ah lithium battery kit
o MSRP: $2,399.99
• HELIX ICE Conversion Kit – MEGA 360 o Includes everything needed to convert a HELIX 8, 9, or 10 G4N with MSI or MDI for ice fishing with MEGA 360 Imaging • MEGA 360 transducer, shuttle, base, shaft positioning handle, depth collars, height adjustment, GPS Heading Sensor and a 20Ah lithium battery kit
o MSRP: $1,999.99
• HELIX ICE Conversion Kit o Accessory Ice Shuttle for Helix 7, 8, 9, 10 CHIRP models
o Includes premium shuttle, mounting hardware and CHIRP ICE transducer (Battery and charger sold separately)
o MSRP: $399.99
• ICE PTC CHIRP H5 FB o ICE Conversion kit with CHIRP ICE transducer and shuttle for HELIX 5 CHIRP models, G2 and newer
o Includes bag, shuttle and mounting hardware and CHIRP transducer (Battery and charger sold separately)
o MSRP: $249.99
• ICE PTC XI 9 20 H57 o ICE Conversion kit with XI 9 20 ICE transducer and shuttle for HELIX 5 non-CHIRP models
o Includes bag, shuttle and mounting hardware and standard Dual Beam CHIRP ICE transducer (Battery and charger sold separately) MSRP: $249.99
For more information on the Humminbird ICE lineup, go to https://www.humminbird.com/ice.
